A generation ago, vibration measurements relied on analog meters, bulky probes, and time-consuming manual interpretation, performed only by specialists. Today, handheld diagnostic devices and wireless smart sensors, typically equipped with tri-axial accelerometers and supported by advanced signal-processing software, capture high-fidelity vibration signals from machine components in seconds.
This evolution reflects how far maintenance technologies have progressed, transforming Vibration Analysis from a niche diagnostic practice into one of the most widely used and high-impact Condition Monitoring Techniques in industrial reliability.
This shift toward smarter, faster, and more connected equipment mirrors the broader rise of Predictive Maintenance (PdM), where precise condition data and early-stage fault indicators help prevent failures before they affect production, safety, or maintenance budgets.
As industrial plants adopt more advanced Predictive Maintenance solutions, Vibration Analysis plays a central role in identifying mechanical issues in rotating machines long before they escalate into functional failures. Unlike many symptoms that become noticeable only at advanced stages, these early vibration signatures provide a crucial first line of defense in any PdM strategy.
Understanding the toolset behind this condition monitoring technique is essential. Vibration monitoring relies on a combination of hardware (ranging from route-based portable data collectors and advanced handheld vibration analyzers to permanently mounted sensors) and analytic software that transforms raw vibration data into accurate diagnostic insights. Each tool contributes differently, from rapid route-based inspections to real-time continuous monitoring, depending on asset criticality and monitoring objectives.
However, the integration of this toolset into a Predictive Maintenance platform unlocks its full value. Once vibration data is centralized and contextualized, the platform enables continuous trend analysis, early anomaly detection, automated fault classification, and structured reporting across both critical and non-critical assets.
This article provides a comprehensive guide to the Vibration Analysis Toolset. You will learn how each hardware category works, when to use them, how vibration analysis software interprets signals, and how all components operate together within a modern PdM environment.
Table of Contents
Hardware Tools for Vibration Analysis
Vibration Analysis relies on a range of hardware tools engineered to capture high-fidelity vibration signals across diverse assets and operating conditions. These devices differ in form factor, sensor configuration, and data-acquisition capabilities, enabling everything from quick route-based measurements to continuous real-time monitoring.
Each category of equipment serves a distinct inspection need: portable diagnostics, walk-around measurements, embedded sensing, or permanent online surveillance. Selecting the appropriate hardware, including the different types of vibration sensors, ensures that vibration data is accurate, repeatable, and representative of the machine’s true operating state and its evolving behavior.
The main hardware tools used in industrial vibration monitoring include:
- Portable Data Collectors
- Handheld Vibration Analyzers
- Mounted Vibration Sensors
Portable Data Collectors

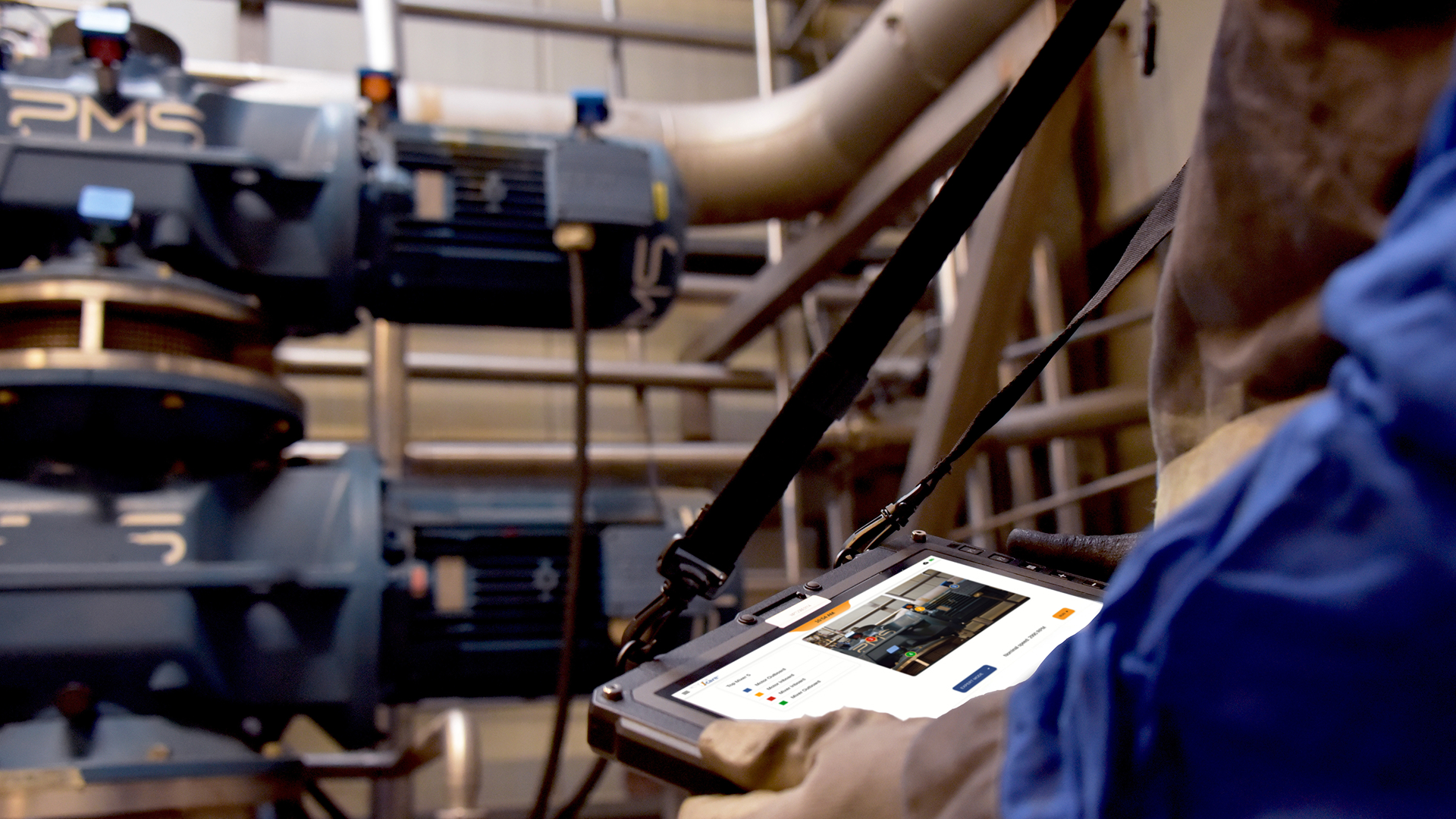

A Portable Data Collector is a rugged, battery-powered device primarily designed for collecting raw vibration data from machinery during inspection routes.
This tool prioritizes rapid data acquisition and extensive coverage rather than immediate diagnostic capabilities.
It generally offers minimal to no real-time vibration analysis, requiring collected data to be uploaded to a PdM platform or dedicated vibration analysis software for detailed post-processing.
Due to its straightforward operation, a portable data collector is typically used by maintenance technicians or non-specialists during routine inspections.
Handheld Vibration Analyzers

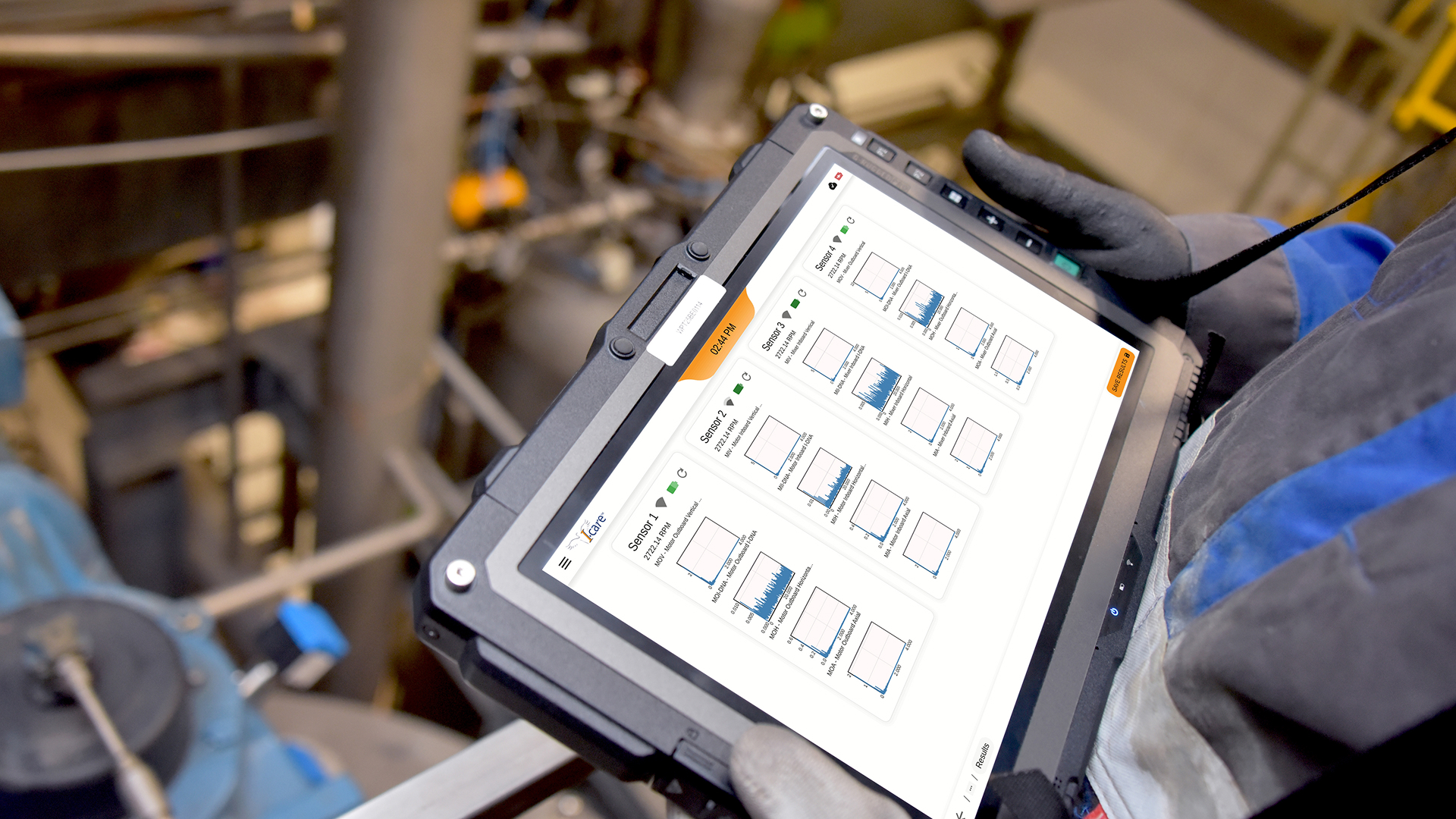

A Handheld Vibration Analyzer is a portable device equipped with an onboard processing unit, an interactive display screen, and built-in analysis tools.
This device not only captures vibration data but also offers advanced features such as immediate, on-the-spot diagnostic analysis, FFT spectra generation, waveform inspection, and preliminary fault-type identification.
Its real-time diagnostic capability empowers technicians to make informed decisions directly at the asset location, significantly improving troubleshooting efficiency. Although real-time analysis is possible, routine data collection often still undergoes comprehensive batch analysis afterward.
A Handheld Vibration Analyzer is particularly valuable for targeted investigations and troubleshooting activities, and it is commonly operated by PdM engineers or trained vibration analysts.
Mounted Vibration Sensors
A Mounted Vibration Sensor is permanently installed on assets, providing continuous or periodic remote vibration monitoring of rotating machine behavior without manual data collection, making it a powerful tool for advanced vibration testing in maintenance programs.
This sensor can be wired or wireless:
- Wired sensor: Traditionally used in vibration monitoring systems, wired sensors are permanently connected to data acquisition hardware. They are typically applied where a constant data stream is required, and power availability is not an issue.
- Wireless sensor: Representing a more recent evolution in vibration monitoring, wireless sensors are battery-powered and enable flexible deployment on remote, mobile, or hard-to-access assets where cabling is impractical, supporting broader and more scalable Predictive Maintenance programs.
Both types may feature a built-in tri-axial accelerometer capable of capturing detailed vibration data along all three axes (X, Y, and Z), ensuring comprehensive detection of machinery motion and potential faults.
A Mounted Vibration Sensor transmits vibration (and often temperature) data directly to a cloud-based PdM platform or a local gateway, facilitating real-time data visualization, automated fault detection, alerts, and long-term trend analysis.
This technology significantly reduces or eliminates the need for manual inspection routes, making it particularly advantageous for:
- Process-critical equipment, where early fault detection is essential to prevent costly unplanned downtime
- Remote or inaccessible assets, where regular manual inspections are impractical or inefficient.
- Hazardous operating environments, where technician safety could be compromised (e.g., high temperatures, confined spaces, hazardous atmospheres).

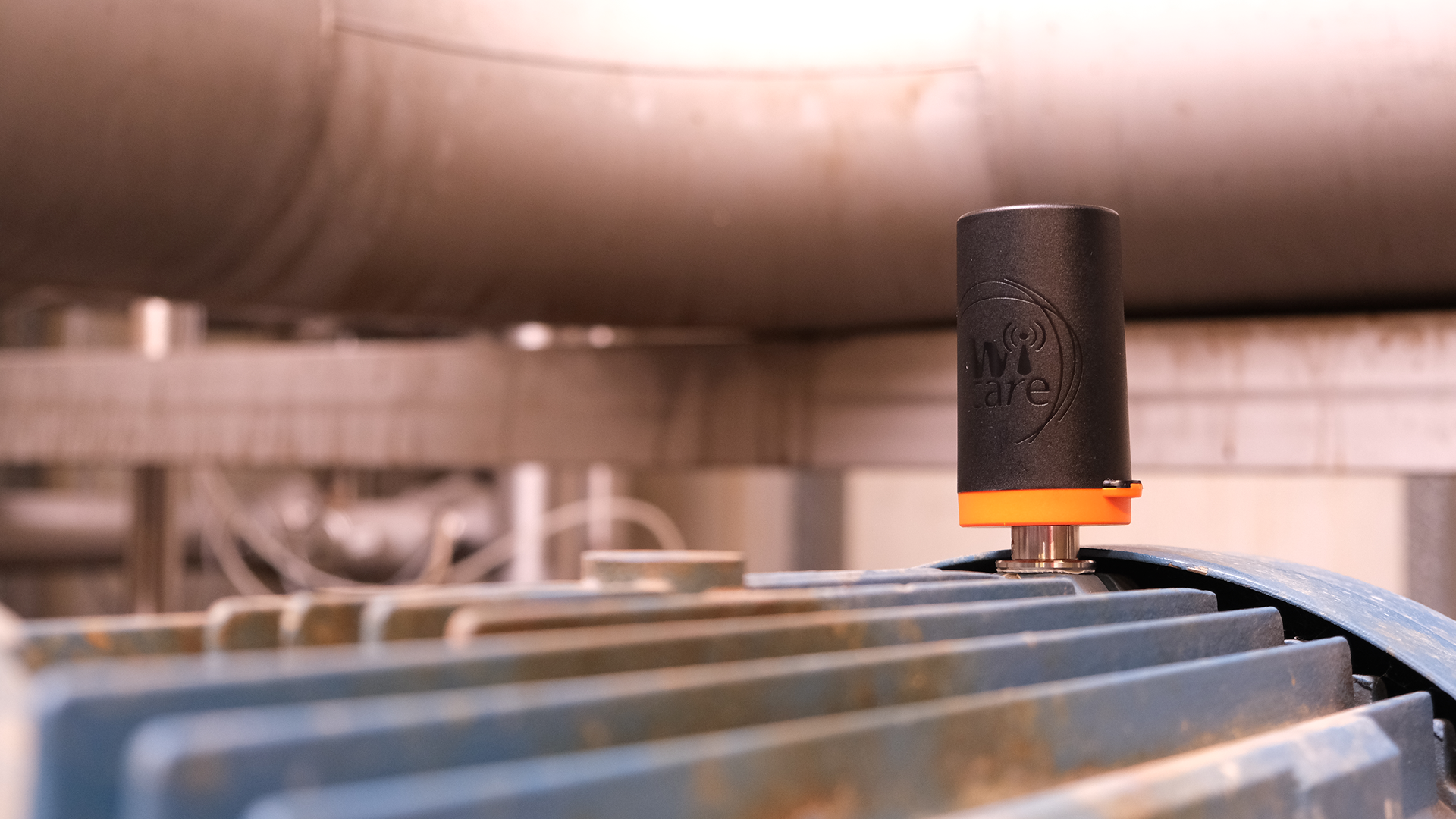

Example: The Wi-care sensor is a wireless, piezo-electrical tri-axial vibration and temperature sensor whose key features include accurate monitoring of a wide frequency range (from low to high) combined with high-resolution FFT capability. Designed for precise vibration monitoring in demanding industrial environments over extended periods, thanks to its long-lasting battery life, the Wi-care enables maintenance teams to automate condition monitoring tasks and integrate sensor data seamlessly into PdM platforms.
Vibration Analysis Software
A Vibration Analysis Software is specifically designed to allow vibration analysts and maintenance engineers to analyze and interpret machine vibration data collected from portable data collectors, handheld analyzers, or permanently mounted sensors. This software provides advanced signal processing and powerful visualization tools, including:
- FFT Spectra: Converts raw vibration signals into detailed frequency-domain representations, enabling precise identification of fault signatures.
- Time Waveform Analysis: Offers visualization of raw vibration data in the time domain, assisting in identifying transient or time-specific mechanical issues.
- Envelope Analysis: Isolates and amplifies subtle fault signals, particularly effective for early detection of bearing and gear faults.
- Waterfall Plots: Provides three-dimensional visualization of vibration data across frequencies over time, highlighting trends and progressive fault development.
The software facilitates manual fault identification through direct comparison with established fault frequency signatures. Given the complexity and depth of diagnostic information provided, effective operation typically requires a trained vibration analyst or PdM engineer for accurate data interpretation and decision-making.
Need Expert Support to Turn Vibration Data Into Actionable Insights?
Reliable diagnostics depend not only on advanced Vibration Analysis Software, but also on correct sensor placement, consistent data collection practices, proper frequency-range selection, and expert interpretation. Accurate fault detection requires the right tools, clean signals, and the trained judgment of certified vibration analysts.
Interpreting subtle changes in spectra, waveforms, and fault signatures often demands specialized training and contextual knowledge of machinery behavior. Within I-care’s Vibration Analysis services, vibration data processed in I-see™ is analyzed and reviewed by experienced vibration analysts, who validate findings, diagnose potential issues, and translate analytical results into clear diagnostic reports and structured maintenance recommendations.
At I-care, our specialists help you detect hidden vibration patterns that indicate emerging faults and protect your critical assets.
